So after all the fun and excitement with development or research it's time to present results to the public. And for many including us this is usually starting point for mostly boring and sometimes frustrating work. Pictures never seem to be in the right format, they have poor resolution, fonts are ugly or word processor simply crashes when importing them, etc... So here are two examples which show you how we have solved this problems.

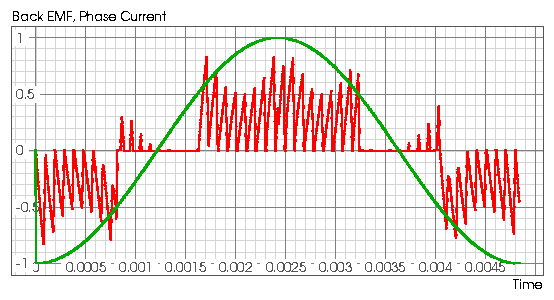

In the first example you can see a picture in PNG format which was automatically generated from Spice Opus plot window. We set things in such a way that you get a picture of the same size which is configurable through the init file.
Second example is in PDF format so you need Adobe Acrobat Reader or Ghostscript to see Example of Spice Opus Plot Window in PDF format. In this case picture was automatically generated in PDF format and included in MIKTEX document. You can find more about MIKTEX on MIKTEX home page.
If you like the results proceed to the following sections where you will find all necessary information how to do it yourself on your platform without much hassle. Since the actual conversion is done by Ghostscript it is also possible to generate pictures in other graphic formats suitable for inclusion in almost any word processor (MS Word, Wordperfect...). Also this approach is not limited to the Spice Opus, but you can use it with any other program.
Procedure to generate pictures is quite the same on Windows and Linux so the following explanation covers both operating systems. Details about about required software, installation, configuration, troubleshooting and other platform dependent specifics are explained in the dedicated sections. For those who want to change or to improve something there are additional information in Soexp Utility.
Procedure to generate picture of plot window goes like this:
If everything has gone well you now have the picture in desired format. On Windows platform it is possible to merge step 2 and 3 and automate this procedure further (Linux to follow). In this case all settings on per case basis could be done only through the init file.
Since we at our place use only Debian GNU/Linux (Sid and Sarge) and derivatives (MEPIS) all installation specifics are dedicated to this distribution. At time of this writing Debian distributes tree different versions of gs: gs-gpl, gs-afpl, gs-esp and all of them works with soexp.
prompt:$ cd /usr/local/src
prompt:$ tar -xvzf soexp.tar.gz
prompt:$ gcc -Wall -o soexp soexp.c (only if you want to compile soexp by yourself!)
prompt:# mv soexp /usr/local/bin (as root!!)
prompt:# apt-get install gs-gpl gs-afpl gs-esp
prompt:# update-alternatives --config gs(as root!!)
And that's all. If everything went smoothly you should have working system. You can verify it by running ghostscript (gs) or any of mentioned front ends to it.
At the beginning of this section I must inform you, that on the Windows platform we use only Windows 98/XP and all tests we performed were on this two versions of the Windows. There is no reason why the whole procedure shouldn't work on other versions of Windows too, but we didn't test this.
Install the Soexp, just extract contents of archive into desired folder.
The next program to install is Ghostscript. If you have decided to install GSview do it after Ghostscript. Installation of both is very easy and straightforward process. Both come in single executable file. Just run them and leave all options on their default values.
If it is good enough for you that every time you want to generate a picture you have to execute Soexp from the command prompt within the DOS window you can safely skip this step and proceed with the installation of printer driver. Otherwise create folder c:\redmon and extract content of Redmon archive into it. We will also use program Redrun which is part of Redmon. If you are using Windows NT you should read readme.txt which comes with Redmon. Now you just run setup.exe and you are done with installation. If you have decided not to install Redmon into c:\redmon just be careful to use your own installation path instead of this one later.
The last step is to install and configure Postscript printer driver. Any Postscript printer driver should work as long it's set properly. We use driver for Apple LaserWriter II NT, the one suggested in GSview documentation. According to this documentation it is preferred one because it supports only basic postscript functions, so there shouldn't be any problems with compatibility. All tests we did were done with this printer driver. If you have decided to use any other printer and something doesn't work as expected, first try to use this one. Because right printer settings are crucial for the success of operation here are those which should be changed from their default values:
Always use built-in printer fonts instead of TrueType fonts
Postscript output format: Encapsulated PostScript (EPS)
Postscript header: Assume header is downloaded and retained
If you have chosen not to use Redmon installation is finished otherwise proceed with Redmon configuration.

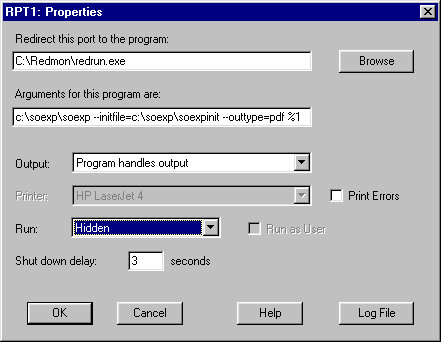

Short description of the first two settings may be valuable if you decide to change something. Program redrun.exe which appears in "Redirect this port to the program:" is a part of Redmon. Its function is to save printer output into the file with a random name and runs program in "Arguments for this program are:". In our case this is the Soexp and all its command line. If the path to the Soexp is not set in a PATH variable (autoexec.bat) should be included here. "%1" is the name of Soexp input file. If you have not specified ž output file on soexp command line under the Port Settings you will get output file with random name in c:\windows\temp directory.
If you need to generate pictures in different formats frequently the best way is to set up more then one printer and redirected port. You just repeat steps above and specify different printer name and command line options for the Soexp (for example: --outtype=png).
